Name: Sensor Research & Development Corporation
Address: 5 Godfrey Dr, Orono, ME, 04473, USA
Telephone: 1-888-390-5234
Price range: $$

Purchasing a T&E Kit allows the End User to operate SRD’s SMART Gas Sensor technology to observe rapid reversable signal responses from specific Nano-Sensors within the array and assess integration requirements for End User applications.

Order a T&E Kit

Starting At $15K

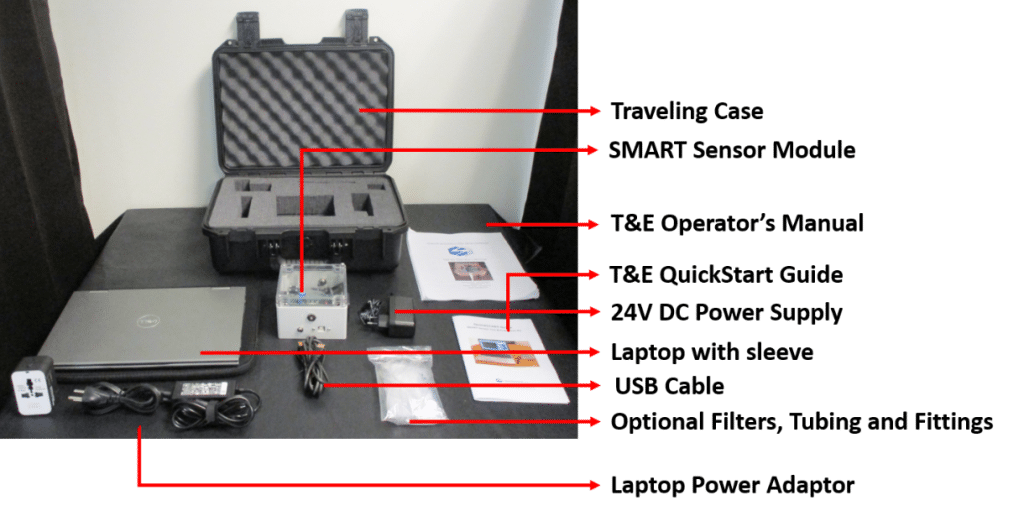

T&E Kit Includes:

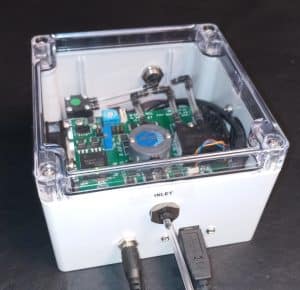

Physical Characteristics	SMART Sensor: Dimension: 1.0″ Diameter x 0.5″ Height Weight: 0.22 oz. (6.28 g) Sensor Module: Dimension: 4.7″ L x 4.7″ W x 2.5″ H Weight: 2 lbs (81.7 g)
SMART Sensor	16 Nano-Sensor Array Integrated RH/Temp sensor Embedded EEPROM w/ algorithms
Microcontroller	Texas Instruments Dual-Core Real-Time Microcontroller
Pump	12 volts DC input; 30mA average; 0.36W
Flow Sensor	+5.00 VDC Input; 15 mA Max Consumption; 0-125 ccm Range
Power	24-volt DC input; 80mA average (100mA max); 1.9 W (normal operation, 2.4W max)
Outputs/Communications	USB

SMART Gas Sensor Test & Evaluation (T&E) Kit
